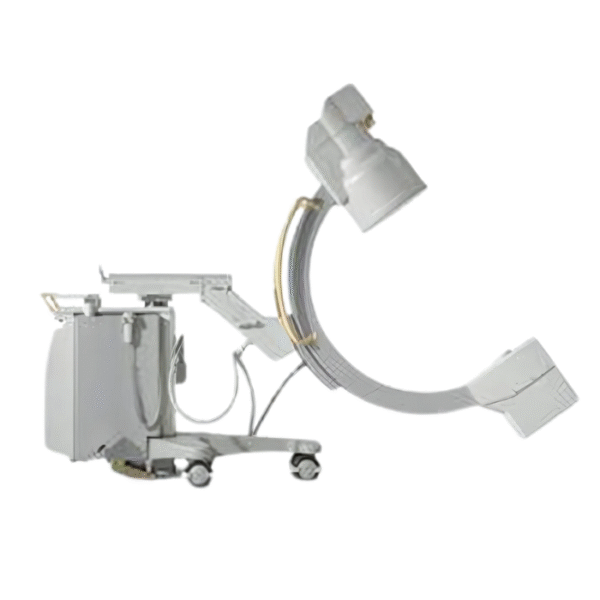

Philips BV Libra C-Arm – Refurbished Compact Fluoroscopy System

The Philips BV Libra C-Arm is a compact and lightweight mobile fluoroscopy system, fully refurbished for surgical precision and clinical reliability. Equipped with a high-resolution digital CCD camera and your choice of 6″ or 9″ image intensifier, it delivers real-time fluoroscopic imaging with high contrast and clarity—while minimizing radiation exposure.

This system is designed for mobility and performance in fast-paced environments such as orthopedics, trauma surgery, neurosurgery, vascular interventions, and ICU settings. Its compact footprint and intuitive design allow clinicians to easily position the system even in crowded operating rooms.

✅ Key Features:

• Compact & lightweight design – easy to maneuver and operate

• Digital CCD camera with 1K x 1K resolution

• Choice of 6″ or 9″ image intensifier

• Smart fluoroscopy imaging with reduced radiation dose

• ±180° rotation with extended angulation (+90° to -45° optional)

• Ultra-smooth C-arm positioning with 77 cm free space

• Compatible with emergency, ICU, and outpatient settings

🔧 Technical Specifications:

• X-ray Generator: 3.15 kW (110 kV / 20 mA) – Constant Potential (CP)

• X-ray Tube: Stationary anode with active cooling

• C-arm Depth: 61 cm | Free Space: 77 cm

• Rotation: ±180° (stops at ±135°)

• SID (Source to Image Distance): 98 cm

• Image Formats: 9″, 7″, and 5″ imaging fields

• Lowest Working Height: 102 cm lateral position

• Filtration: 0.1 mm Cu + 3 mm Al

🛠️ Refurbishment Process Includes:

• 300-point internal inspection

• New CMOS & board-level batteries

• Brake pads, battery packs, and cosmetic restoration

• Factory calibration and FDA Form 2579 included

• 30-day standard warranty (6-month and 1-year options available)

• Nationwide shipping across all provinces
