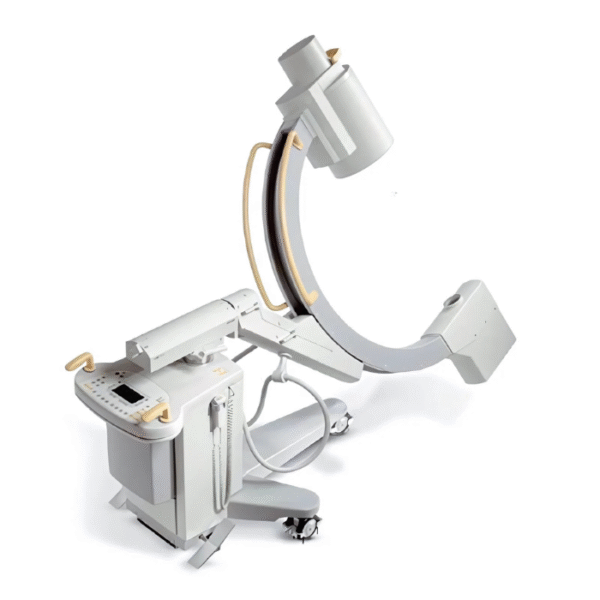

Philips BV Endura C-Arm – Fully Refurbished Surgical Imaging System

Philips BV Endura C-Arm – Refurbished, Reliable, Radiology-Ready

The Philips BV Endura is a high-performance mobile C-arm fluoroscopy system designed for real-time imaging during surgical, orthopedic, and vascular procedures. Featuring a 1K x 1K digital CCD camera, SmartVision technology, and optional 9” or 12” image intensifiers, it delivers exceptional clarity and depth of field for complex intraoperative tasks.

Whether in vascular, trauma, or urologic procedures, the BV Endura ensures consistent imaging performance with its stationary anode X-ray tube and extended rotational capabilities. The MobileView compact workstation improves surgical workflow with intuitive controls and easy maneuverability in crowded ORs.

✅ Key Features:

• 1K x 1K resolution CCD camera for high-detail imaging

• Triple-mode 9” or 12” image intensifier options

• Extended angulation for vascular imaging (+90° to -45°)

• Compact MobileView station with real-time processing

• SmartVision with motion detection and 16-bit image enhancement

• 300-point in-house refurbishment and FDA Form 2579 included

📐 Technical Specs:

• X-ray Power: 3.15 kW (110 kV, 30 mA)

• SID: 98 cm | C-Arm Depth: 61 cm

• Rotation: ±180° (safety stop at ±135°)

• Angulation: +90° to -25° (standard), -45° (optional)

• TV Camera: High-res digital CCD

• II Sizes: 9” / 12” – Triple Mode

• Beam Filtration: 0.1 mm Cu + 3 mm Al

🛠️ Refurbishment Includes:

• New CMOS batteries, brake pads & main battery pack

• Fresh paint & cosmetic restoration

• Internal component overhaul with factory-grade calibration

• Standard 30-day warranty (extendable to 6 or 12 months)

• Nationwide delivery available
