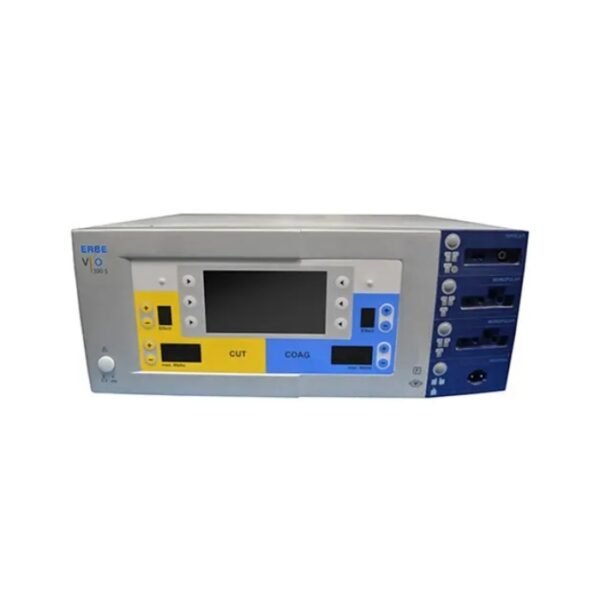

Erbe VIO 200 S Electrosurgical Unit – Compact HF Generator for Bipolar & Monopolar Surgery

The Erbe VIO 200 S is a high-frequency electrosurgical unit engineered to provide precise power control in both monopolar and bipolar modes. Despite its compact design, it delivers robust performance for various surgical disciplines including general surgery, gynecology, urology, and endoscopy.

With AutoCut, AutoCoag, and AutoBipolar modes, the VIO 200 S intelligently adapts to tissue impedance, ensuring safety, reduced tissue trauma, and consistent surgical outcomes. Its intuitive interface and modular expandability make it ideal for both outpatient clinics and fully equipped ORs.

⚙️ Technical Specifications:

🔌 Power & Input:

• Input Voltage: 100–240 V AC / 50–60 Hz

• Power Consumption: Approx. 600 VA

• Output Power (Max):

  • Monopolar Cut: Up to 200 W

  • Monopolar Coag: Up to 120 W

  • Bipolar Coag: Up to 120 W

⚡ Output Modes:

🔸 Monopolar Cutting:

• AutoCut: Automatic power adjustment

• DryCut: Clean incisions

• HighCut: Deeper cutting with hemostasis

🔸 Monopolar Coagulation:

• SoftCoag: For gentle coagulation

• ForcedCoag: Stronger coagulation effect

• SprayCoag: For surface coagulation

🔸 Bipolar Modes:

• AutoBipolar: Activation upon tissue contact

• Standard Bipolar: Consistent, controlled coagulation

🧠 Key Features:

• Compact Design: Ideal for mobile or space-limited environments

• Plug and Cut Feature: Automatic instrument recognition

• User-Friendly Interface: Quick access to preferred modes

• Upgradeable System: Compatible with ERBE modules like APC

🌡️ Operating Conditions:

• Temperature: +10°C to +40°C

• Humidity: 30–75% (non-condensing)

• Atmospheric Pressure: 700–1060 mbar

📐 Dimensions & Weight:

• Size (W × H × D): 410 × 145 × 370 mm

• Weight: Approx. 8 kg

🏥 Ideal For:

• Minor and major surgical procedures

• Endoscopy units

• ENT and outpatient settings
